Receiving GB3EN

GB3EN is designed to be received on a cheap satellite receiver.

This receiver works down to symbol rates as low a 1MS/s and decodes H265 as well.

Koqit V5H H265 Satellite Receiver

https://vi.aliexpress.com/item/33015116271.html

Also, you will need an aerial

If you don’t have a horizontal 23cm aerial then its quite easy to make one. If you make this design really accurately it should have a gain of 16db

If not made so well, then its gain is still about 10db. Connect it to the RX with some satellite coax.

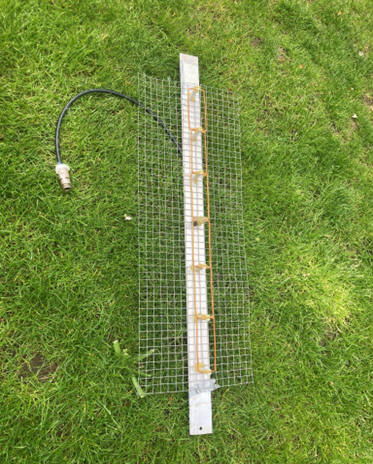

Here is how to make a 23cm panel antenna

You may need a preamp as well, it depends on how far away from GB3EN you are.

Transmitting to GB3EN

You must have valid Amateur Radio Licence

You need is a PC, an i5 or better, running OBS and DATV-NotSoEasy software

Adalm Pluto SDR or a Libre SDR

Power amp

Webcam

Another aerial like the one you made for the receiver but with dimensions as stated in the construction article

Resources

British Amateur Television Club
batc.org.uk

Receiving GB3EN on 1312MHz

Koqit V5H H265 Satellite Receiver
https://vi.aliexpress.com/item/33015116271.html

23cm aerial construction article (23cm Panel Antenna)
23cmPanelAntenna.html

Transmitting to GB3EN on 1249MHz at 1MS/s or 333KS/s with any FEC

DATV-NotSoEasy v1.7
https://forum.amsat-dl.org/index.php?user-post-list/2143-dl5ocd/

Open Broadcaster Software (OBS)
https://obsproject.com

Adalm Pluto SDR
https://uk.farnell.com/analog-devices/adalm-pluto/learning-module-plutosdr-3-8ghz/dp/4032976

23cm PA 1w (use at no more than 0.5w)
https://vi.aliexpress.com/item/1005002597232784.html

23cm PA 15w (use at no more than 8w)
https://www.ebay.co.uk/itm/134974609222
